How to build dashboards directly on your test/dev Datazen server

Greetings all!  After guest-posting on Rob Collie’s blog about Datazen earlier this week, I’m back on my own for this post.  One of the things that I love about Datazen is that you can use any Windows 8 device to build your dashboards on.  Simply go to the Windows 8 store, download the Datazen Publisher app, and you can be building beautiful dashboards within minutes.  Unfortunately, it appears not everyone is running Windows 8 in their organization (shocking, I know), so I wanted to show you a way to build dashboards directly on the Datazen server you spun up in my previous post, which is running Windows Server 2012.

When you use Windows Server 2012 machine, you have the ability to access the Windows App Store, just like you would from any Windows 8 machine.  However, you have to enable that, as it is turned off by default.  Here’s how you can turn that on –

First, go to the Server Manager and open it –

Then, you’ll want to enable a new feature.  So choose Add Roles and Features –

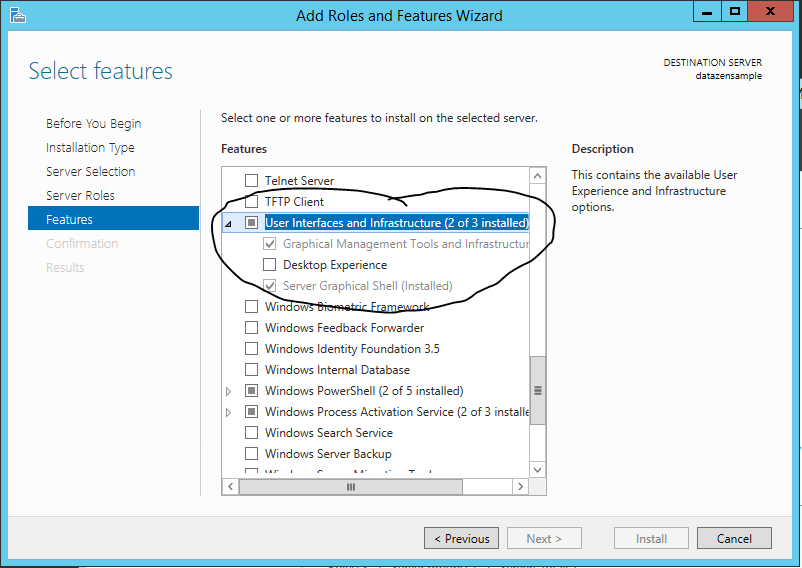

Click next until you get to the “Features” selection, then scroll down amongst the features and expand the “User Interfaces and Infrastructure” selection area.

We can then enable the “Desktop Experience” by checking that box, clicking “Add Features” when the pop-up window comes up, and then choosing “Next”.

I’d suggest now checking the “Restart the destination server” checkbox and then hitting Install.  It has to restart anyways before that stuff is enabled, so you might as well do it now.  It’ll take about 15-20 minutes to install everything, and then the server will restart.

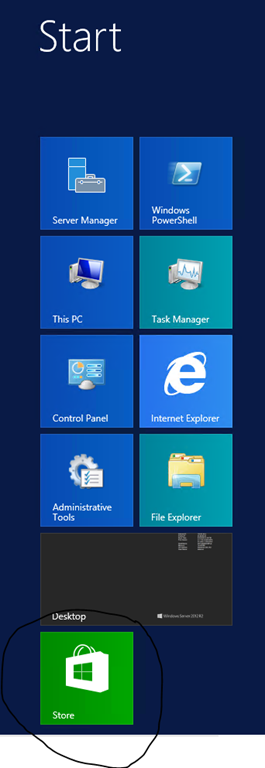

Once done, the Store App will appear.

Here is where the first gotcha comes along.  You can’t use the built-in administrator account to use the Windows Store on the server, so you need to make sure you’re logged in with another account besides the one you setup when you setup the server.  That user can have server administrator privileges, however.  So great, you can open the Windows Store as this user.  Here is the next gotcha –

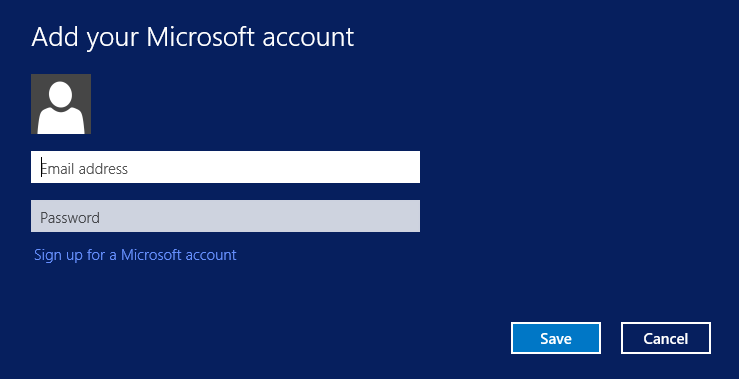

You need a Microsoft Account to download and install the apps – so you can either create a new account, or you can use one you already have setup and use for Xbox Live, for example.

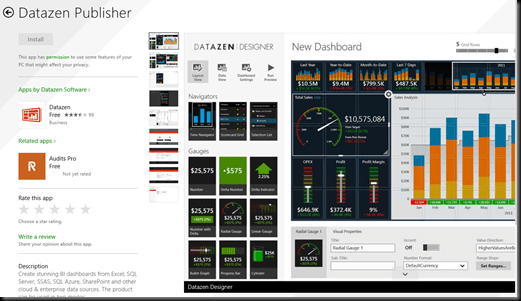

Once that’s done, you can download the Datazen Publisher App and it will start installing

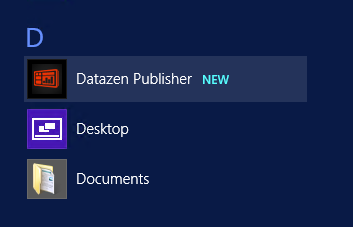

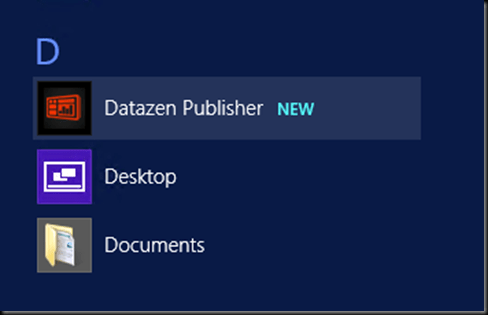

Once finished, it will show up in your list of apps –

Now, one last gotcha.  In order to get the publisher working on a Windows Server 2012 machine, you will need to create a Loopback Exemption for the Datazen App.  You can do this one of two ways –

Open an administrator command prompt, and then type this:

checknetisolation LoopbackExempt –a -n=componentart.datazenpublisher_4hjyx1gpectq6

or install this on your server and use the gui:
https://loopback.codeplex.com/

I prefer the latter, but it is up to you.  Once that is done, you can open the Datazen Publisher app and connect to your local server as the location you want to publish to.

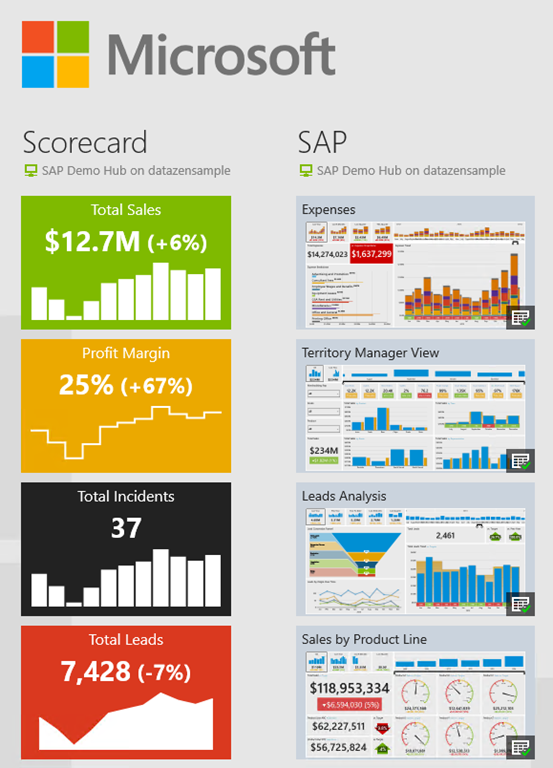

Once connected, you should see any dashboards or KPI hubs that you’d previously created, and you’re ready to go.  You now have a one-stop shop for both dashboard creation and hosting!

Thanks for reading, and I’ll have more stuff later this week!
