How to setup a test/dev Datazen Server instance in Microsoft Azure

Hi all!  Well, it’s been quite some time since my last post, but with the news breaking last week that Microsoft acquired Datazen, I decided it was time to reenter the blogosphere to help folks get started using this fantastic product.

First things first, go grab the Datazen Publisher App from the Windows Store.  Anyone can download and use Datazen on their Windows 8/8.1 device to build dashboards on top of local Excel files.

Visual02

For most folks, however, they’ll want to use live data sources, make dashboards available on iPad/Android devices, phones, etc.  To do all that, you’ll need to stand up a Datazen server to host the dashboards.  Microsoft has made the Datazen server software available to download right away, provided you are a SQL Server Enterprise Edition customer with version 2008 or later AND have active Software Assurance coverage.

Assuming you meet those requirements, it’s very easy to get a single server instance up and running quickly by leveraging Microsoft Azure, and especially for test/dev scenarios.  So I’m going to walk you through just how you would do just that.

This walkthrough assumes you already have a Microsoft Azure account and have a basic understanding of the Azure portal.

1. Go to azure.microsoft.com and login to your Azure portal.

2. Select New – > Compute -> Virtual Machines -> From Gallery

3. Select the Windows Server 2012 R2 Datacenter Image

clip_image002

4. Click the next arrow at the bottom right.

5. Enter a virtual machine name, choose Basic or Standard Tier (recommended), then choose A4 as the machine size. A4 has 8 cores, which is the minimum number of cores for a single machine setup. Enter the machine admin username/pass and hit the next arrow

clip_image004

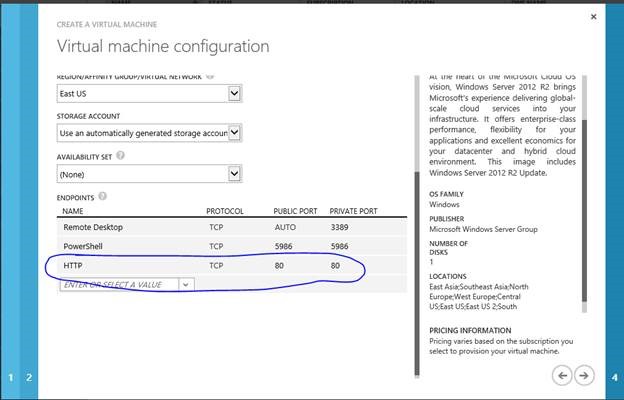

6. Create a new cloud service (make sure the Cloud Service DNS Name is available), then choose the subscription it should be billed to, the region it should be deployed to (choose the one closest to your location), and then leave the Storage Account and Availability Set as is. Make sure you add an http endpoint at a minimum (you will need to scroll to add the endpoint).

clip_image006

7. Click the right arrow and then click the checkmark to start the deployment process. You’ll see it start the provisioning process in the list of the virtual machines you are responsible for in Azure.

clip_image008

8. Once it is finished, connect to the VM via Remote Desktop and enter the admin username/password

clip_image009

Head to the following link and download the Datazen server software onto the VM – you can save it anywhere you will be able to easily access it. You may need to turn off IE Enhanced Security on the server to do so. Click the “Configure this local server” link in the Server Manager dashboard that appears when you login

clip_image011

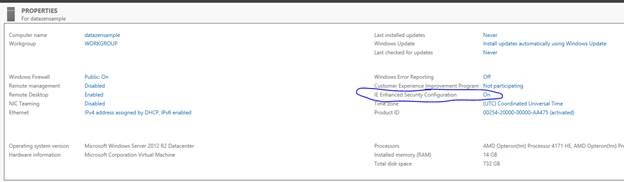

Then change the IE Enhanced Security Configuration from “On” to “Off” for Administrators at a minimum. You can always change it back if you really want to when you’re done.

clip_image013

9. The server files come zipped as a download – extract all the files and then run the executable to start the install process

clip_image015

10. Click Next through the wizard, accepting the terms in the License Agreement and moving through each screen.

clip_image016

Hit Next

clip_image017

Hit Next

clip_image018

Hit Next

Once you get to the password screen, choose a password for the Datazen admin. This doesn’t have to be the same password as you used for the server.

clip_image020

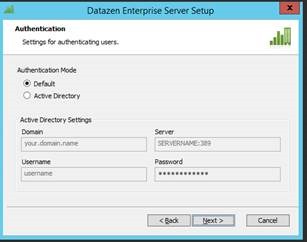

Leave the authentication mode as “Default” and hit Next.

clip_image022

Create a new text file on the desktop and copy the encryption key on the next page to it. Save the file to somewhere safe. Hit Next

clip_image024

Same thing for the instance ID – copy the information to a local text file then save it somewhere safe. In fact it won’t let you proceed until you add it your clipboard. Hit Next when done.

clip_image026

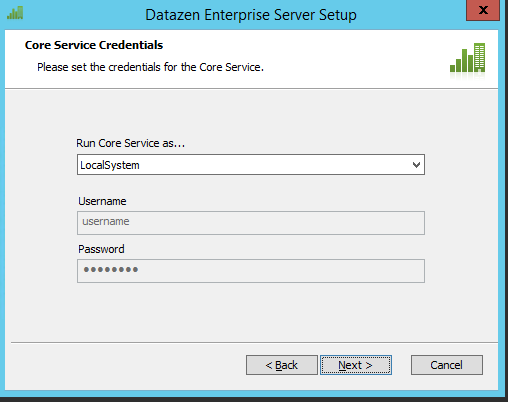

Leave credentials as is and hit Next.

clip_image028

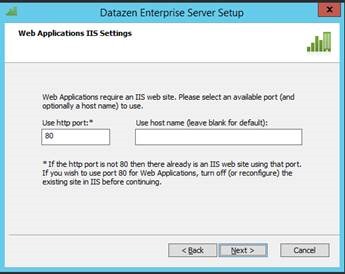

Leave IIS settings as is and hit Next
clip_image030

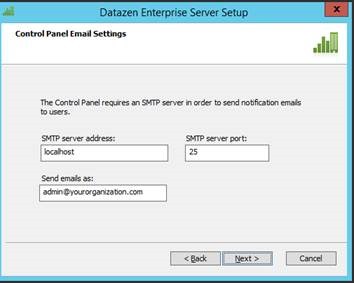

You can leave the mail settings as is if you want since it is a test server and just hit next.  (I’ll go over how to setup the mail settings for this server in a short follow-up blog post sometime in the near future.)

clip_image032

Hit Install and wait until it is complete. It will take a few minutes to finish, so be patient.

clip_image034

To confirm the service was installed properly and can be reached from the public internet, open a web browser on your local machine and go to (make sure you replace the yourcloudservicename with whatever you named your cloud service) – http://yourcloudservicename.cloudapp.net/cp. If you can successfully connect, you should see the following in your browser window –

clip_image036

Enter the username “admin” and the password you entered DURING THE INSTALL WIZARD and hit Log In. You’ll then be brought to the control panel screen.

clip_image038

You’ll need to create a new user to start creating dashboard hubs, since you need each hub to have an owner. The owner can NOT be the “admin” user. Click “Create User” to create your first user –

Enter the top three boxes (the email address can be fake if you want) and hit “Create User”


You’ll now see a new option to “Create BI Hub”

clip_image042

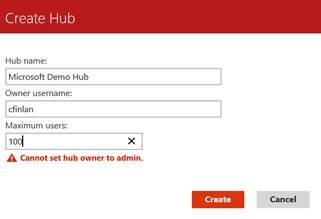

To create a new hub, click the “Create BI Hub” button and enter the info. You can name the hub whatever you’d like, but make sure you enter the username of the user you just created.clip_image044

Hit Create to finish creation of the hub. You’ll now see it in the list of available hubs

clip_image046

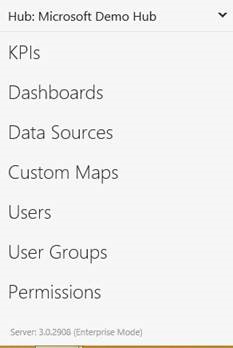

along with a new set of menu options on the bottom of the left-hand side of the screen.clip_image048

At this point, I’d recommend finishing the setup of the user you’d created to be the hub owner. They need to have their password reset, but won’t get an email since we didn’t setup the email notification service with proper email settings. To get around this, click on the Server Users link on the left-hand side of the screen

clip_image050

You’ll see the user and a “Set Password Link” option next to the username. Click it and then copy the address to your clipboard.

clip_image052

Log out as the admin before completing this next step. You can logout in the upper right hand corner of the browser and hit the dropdown arrow. Choose Logout.

clip_image053

Open a new browser window and paste the URL into the address bar. You can now finish setting up that user by entering the password you want for the account.


Once you’ve completed the process, you should be brought into a new screen as the user you just finished completing and have the ability to configure the hub accordingly.

clip_image057

Logout as this user and log back in as the admin before proceeding.

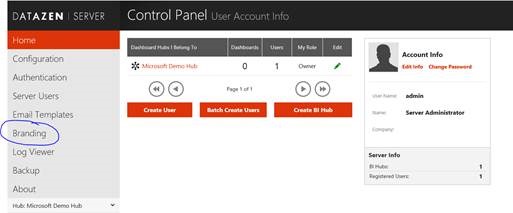

One of the great features you get with Datazen is the ability to use custom branding for the server and for each dashboard hub you create.  To add a brand package you’ve created, click on the branding link on the left hand side and simply upload the brand package to the server. Make sure you choose the Server to upload it to, and not the hub.

clip_image059


You’ll now see the Server icon has the “Microsoft” branding associated. To make sure it was applied properly, open a new browser and enter the following url (make sure you replace the mycloudservicename with whatever you named yours) –

http://mycloudservicename.cloudapp.net

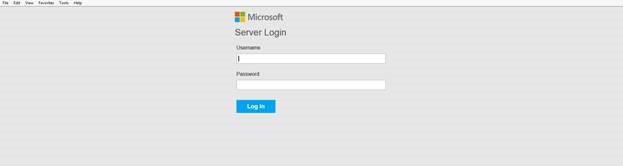

My viewer login screen has been updated, since I’ve added the Microsoft brand package to the server –

clip_image063

Now we can connect to the server you’ve setup from the Datazen Publisher App.  If this is the first time using the app, you’ll have the option of connecting the Datazen Demo server. I recommend going ahead and doing that, so you’ll have some nice demo dashboards to create from immediately.

To add this server as an additional server to connect to (and publish to, eventually), right-click on the bottom of the app and select the server icon.

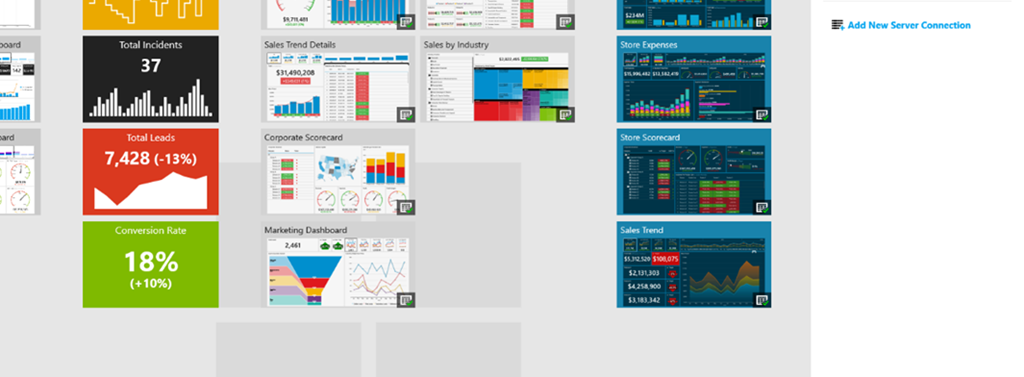

A fly-out will come from the right-hand side showing the list of servers, followed by an option to add a new server connection–


Choose “Add New Server Connection” and enter the information for the server you just setup. MAKE SURE YOU UNCHECK THE “Use Secure Connection” box.


When that’s done, you should be connected and now be able to publish dashboards to your Datazen server!

clip_image071

To learn more about how to build dashboards, setup data sources, how to publish, etc., just use the PDF file that came with the server download titled “Datazen End User Documentation”.

There you go – hopefully this guide gives folks what they need to get started with Datazen and begin their new career as a dashboard designer extraordinaire!

Thanks, and feel free to ask any questions in the comments.
